Stiawan, Idris, and Abdullah: Penetration Testing and Network Auditing: Linux
Articles

Journal of Information Processing Systems 2015; 11(1): 104-115.

Published online: November 07, 2014

DOI: https://doi.org/10.3745/JIPS.03.0013

Penetration Testing and Network Auditing: Linux

Deris Stiawan*, Mohd. Yazid Idris**, Abdul Hanan Abdullah**

*Dept. Computer Engineering, Faculty of Computer Science, Sriwijaya University, Sumatera Selatan 30662, Indonesia (deris@ieee.org)

**Department of Computing, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia (yazid@utm.my, hanan@utm.my)

Corresponding Author: Deris Stiawan (deris@ieee.org)

Received October 28, 2013       Accepted December 23, 2013

Copyright © 2005-2015 KIPS all rights reserved

(open-access):

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Along with the evolution of Internet and its new emerging services, the quantity and impact of attacks have been continuously increasing. Currently, the technical capability to attack has tended to decrease. On the contrary, performances of hacking tools are evolving, growing, simple, comprehensive, and accessible to the public. In this work, network penetration testing and auditing of the Redhat operating system (OS) are highlighted as one of the most popular OS for Internet applications. Some types of attacks are from a different side and new attack method have been attempted, such as: scanning for reconnaissance, guessing the password, gaining privileged access, and flooding the victim machine to decrease availability. Some analyses in network auditing and forensic from victim server are also presented in this paper. Our proposed system aims confirmed as hackable or not and we expect for it to be used as a reference for practitioners to protect their systems from cyber-attacks.

Key words: Network attack, network auditing, network forensic

1. Introduction

In earlier work performed by [1] they categorized some types of cyber hacking and described how to manage information of vulnerability and raised awareness about the importance of these issues. This current type of cyber-attack highlighted by [2] and [3] was analyzed and it became the main focus in network security. They created expression, “the dark side of the Internet” and identified threats that can occur and the challenge to solve. This is also corroborated and predicted by [4], who presented the future war in the cyber weapon and its effect. According to [5] and [6] attackers launch their actions inseperably and the steps they used to gain user privilege is called ‘attack taxonomy,’ which is based on differentiation scenarios. This work presents penetration testing to evaluate security flaws in Redhat operating system. On other hand, every bug has the potential to become vulnerable. It was made, exist and patching, often without ever being discovered or exploited. From the attacker’s perspective, vulnerability is an opportunity to exploit. However, from the developer’s perspective, the software/product containing an unknown vulnerability was created. It requires time to make a patch release after the exploitation is found. The consequence is that there is a time delay between an exploit release with patch and a signature release. It is able to be exploited by an attacker if the attacker finds the vulnerability before the developer does. This is also confirmed by [7], which highlighted the vulnerability disclosure time software patching releases and the publication of exploits for update delays due to the disclosure of a vulnerability.
The contributions of this work are summarized e.q: to increase the awareness about security from cyber-attack, to show security flaws or vulnerabilities in a system which could be exploited by attackers, and to present some possible attack scenarios. There are some steps in these scenario that refer to the following works: Scanning [8], Password Guessing [9], Escalating Privilege [10], Implant Malware [11], and Flooding of attack [12].
The rest of the paper is organized as follows. Section 2 presents the experimental results, which are described into two parts—penetration testing and network auditing analysis. Section 3 discussed the analyzed results and Section 4 gives the conclusion and present future work.

2. Experimental Scenario

This work focused on attack and network forensic in Linux Redhat machine of The Intrusion Threat Detection-Universiti Teknologi Malaysia (ITD UTM) data set, as shown in Fig. 1. This raw data set were available in [13] and were requested by several researcher working in the network securityfield.
This section shows ways the hosts used were connected and how the applications were run. The network environment was set up to exploit the target machine and two malicious machines as attackers. Furthermore, there were two ways collect the data: 1) sniff the raw data directly on the 10.10.10.30 used switch and 2) by using the hub terminal, which also captures the broadcast network. Some of the tools used in this scenario are as listed below.

  1. TCPDump was used to sniff real traffic and produce raw data (pcap files). This tool was run on a Fedora 14 (10.10.10.30) operating system.

  2. Collasoft tools [14] and Cascade pilot software [15] were used to simulate and visualize Pcap files. These tools were able to capture, compare and analyse online traffic.

  3. Machine 10.10.10.40 running Snort, used version 2.8.5 (Build 121) with 73 rules to identify and detection threat from pcap files. It was used to identify the threat, as well as to compare attacks are carried out can be recognized or not by snort signature.

  4. Attacker machine 1 called Hacker BT (10.10.10.15) was run on Backtrack 4.

  5. Attacker machine 2 called Hacker XP (10.10.10.20) was based on Windows XP SP3.

2.1 Penetration Testing

In this experiment, all attacks were executed and infiltrated on ITD UTM. A detailed analysis on a Redhat operating system was provided in this phase to run reconnaissance and map resources for applications or default configurations that look like they have security risks. This stage is divided into five steps in this stage: Scanning, Password Guessing, Escalating Privilege, Implant Malware, and Flooding attack.

2.1.1 Scanning

Step 1, scanning stages are explained below (see Fig. 1).

  1. Attacker probes the network 10.10.10.5 via attack machine 10.10.10.20 used Nessus tools

  2. The attack machine 10.10.10.20 scan the local network used Nikto and NMAP scripts

  3. Attacker probes the network 10.10.10.5 via attack machine 10.10.10.15 used Nsteatlth HTTP tools

  4. The attack machine 10.10.10.20 scan “FIN” attack the local network 10.10.10.5 used Zenmap script

  5. The attack machine 10.10.10.20 scan the local network 10.10.10.5 used HTTPrint tools

  6. Attacker probes the network 10.10.10.5 via attack machine 10.10.10.15 used GFILanGuard tools

  7. Attacker probes open port of the host 10.10.10.5 via attack machine 10.10.10.15 used Nettools tools

  8. Attacker attempts reconnaissance the Netbios SMB tools

Several scenarios performed are shown in Fig. 2(a)–(c). Nmap, xprobe and nikto were launched from the Hacker BT machine. In Fig. 2(a), mark ① result from nmap command, Port 22 (SSH) is open and inform running OpenSSH ver 3.5, mark ② confirm Port 23 (Telnet). Meanwhile, Port 80 (HTTP) running on Apache http 2.0.40 Redhat Linux, show in ③ and ④ confirm 111 (rpcbind). ⑤ Show port 139 (netbios) and 443 (SSL). In mark ⑥, Port 3306 (MySQL), 6000 (X11) and 32768 (rpcbind) are open. ⑦ inform MAC address and kernel details of OS. Meanwhile, in Fig. 2(b) mark ⑧ informs detailed Apache services from xprobe and also item ⑨ show version of Apache result from nikto, ⑩ some vulnerability of Apache: DoS and buffer over flow are shown, ⑪ vulnerability from Apache HTTP methods: GET, HEAD, POST, OPTION and TRACE, in mark ⑫ XSS vulnerable from Apache and ⑬ found vulnerability directory indexing of Apache.
Some potential vulnerabilities to exploit were found after some of the scenarios listed above were executed. Therefore, there are correlations between vulnerabilities from the scanning stages and CVE database, which are as follows:

  1. Highlighted Apache vulnerability, related between mark ③ and ⑨ in Fig. 2(a): CVE-2011-3348, CVE-2011-3192, CVE-2007- 3847, CVE-2004-0942; this weakness able remote attacker to cause a denial of service (memory and CPU consumption).

  2. Refer to Fig. 2(a) mark ⑥ MySQL Vulnerability: CVE-2009-2446, CVE-2000-0045, and CVE- 1999-1188; attackers can request format string specifies in a database name in a COM_CREATE_DB or COM_DROP_DB which allows local users to obtain passwords for users who are added to the user database.

  3. Focus on Open SSH exploitable (Fig. 2(a) mark ①: CVE-2008-3844, CVE-2002-0083; victim must voluntarily interact with attack mechanism Gaining Access, attacker allows local users or remote malicious servers to gain privileges, this attack called user to root or remote to local.

  4. CVE-2008-2928 (Fig. 2(c) mark (⑪, ⑫ ): HTTP overflows, allow remote attackers to cause a daemon crash or possibly execute arbitrary code via a crafted Accept-Language HTTP header.

  5. Buffer over flow from Fig. 2(a) item ⑥: CVE-2008-3259 and CVE-2000-0263, this attack enabled local users on some platforms to hijack the X11 forwarding port via a bind and allows an attacker to cause a denial of service via a malformed request.

  6. Denial of service in RPC port mapper on Fig. 2(a) mark ④, ⑥; confirm CVE-2000-0508, CVE- 1999-0195, and also CVE-1999-1225; allow remote attackers to launch a denial of service attack via a malformed request, allows attackers to register or unregister RPC services or spoof RPC services.

2.1.2 Password Guessing

In this stage password guessing was attempted for getting access to the target. The following scenarios were used:

  1. Attacker attempts XSS to HTTP via port 80

  2. Attacker attempts password guessing repeatedly to the 10.10.10.5 via SSH brute-force and Telnet

  3. Attacker used some dictionary attack to guessing the password

  4. If Attacker find the access user, then their login to SSH via putty shell

  5. Attacker try to login via WinSCP Software

Password Guessing was conducted in this scenario. The Hacker BT attempted to exploit the SSH Vulnerability uses Hydra, SSHatter, BruteSSH, and Medusa. Information was obtained from Nmap and other scanning tools, SSH, Telnet and netbios are daemon active and running well in target. From the attacker’s side, the first concern as a target is SSH and attempt to guessing based on dictionary attack. Unfortunately, with a standard Linux configuration, username and password cannot be retrieved after three attempts, the message is “3 incorrect password attempts” (Refer to Stage 7 below in the points listed under “Escalating Privileges”). From the experiment that was carried out simultaneously and online, it is observed that the admin, root, and administrator were some of the users who tried to existing dictionary. Obviously, the duration of the experiment depends on the length of the password list in a dictionary and also its performance and availability target server will be tested, due to the continuously ongoing handshake process.
In this case, some brute-force methods were used, as shown in Fig. 3(a) mark ① result from hydra tools to attempt telnet authentication, medusa show in ② trying guessing password and failed, then attackers successfully found the root password via bruteSSH shown in mark ③. From several experiment conducted, the attacker gets a failure attempt to guess the password. There were a number of alerts produced by Snort, inform threat shown in Table 2 Unfortunately, snort cannot identify all the threats.

2.1.3 Escalating Privileges

The attacker found several potential penetration, such as: Port 21 (FTP), 22 (SSH), 80 (HTTP), 111 (RPCbin) and 3306 (MySQL). In this step gaining access as a super user (root/admin) was conducted by attacker. The scenario is further illustrated below:

  1. Attacker attempted to upload a Trojan via 10.10.10.15, trying to copy the file to the host

  2. Attacker via 10.10.10.15 created mkdir “tools” in the host by WinSCP

  3. Hacker BT login to the host 10.10.10.5 via user: “administrator:

    root@bt:~# ssh administrator@10.10.10.5

  4. Attacker logged into the 10.10.10.5 and used the password from the previous stage, then send command “ls” to browse the directory

    [administrator@localhost]$ ls
    salary_ofthemoth.pdf salary.xls test

  5. Attacker tried to activate the back door via execute the Trojan

  6. Hacker BT ran command “#sudo cat/etc/shadow” and “/etc/passwd” via 10.10.10.20 to escalating privileges

    [administrator@localhost]$ sudo cat/etc/shadow
    Password: Sorry, try again. 3 incorrect password attempts

  7. Attacker attempted to browse the directory “administrator” and “ant” via WinScp

  8. Hacker BT twice logged in “su” to try to escalate their privilege and failed localhost login[4149]: FAILED LOGIN 1 FROM 10.10.10.20 FOR Superuser, Authentication failure

  9. Attacker was unsuccessful in finding the directory password “#sudo/etc/passwd” via 10.10.10.20

2.1.4 Implant Malware

In this step, Hacker BT and Hacker XP attempted to Implant Malware onto target, tried to infect it with malware and implant the rootkit, as follows:

  1. Attacker regained access, identified system more closely and seeked exploit

  2. Hacker XP 10.10.10.15 attempts to ARP Poison via Cain&Abel and failed

  3. Hacker BT 10.10.10.20 attempts to MySQL exploit via metasploit and did not work

    msf > use auxiliary/admin/mysql/mysql_enum
    msf auxiliary(mysql_enum) > set RHOST 10.10.10.5

  4. Hacker XP attempted via Netcat to create Backdoor, which unfortunately failed. Attacker plan to access subsequent entry after the system full controlled to facilitate their re-enter without suspicion afterward.

2.1.5 Flooding

The final penetration testing was to flood the Denial of Services (DoS). The attackers attempted within hours to disrupt the normal functioning then effect to availability the target and they succeeded. This action compiled and visualized in Figure 6 (b), the ICMP packet was dominant and some alert trigger from this action are shows in Table 4.

  1. Hacker XP sent a large number of ICMP packet and repeatedly to flooding the target via Nettools and ping of the death

  2. Hacker XP tried to slow down the response of the target by launching many simultaneous UDP packets

  3. Attacker attempted sending TCP SYN via Trinoo

  4. Attacker flooded packets using forged source via 10.10.10.20

  5. The response value of the handshake process began affected, it was found a high value of delay

2.2 Network Auditing

Penetration to this victim was analyzed and several review presented. The sample Log from the Redhat server is presented in this section. Several illegal attempts from log directory “var/log/messages” and “var/log/secure” are shown below (taken from Figs. 4 and 5).

  1. Machine attacker (10.10.10.15) confirm daemon version of OpenSSH as shown in Fig. 4(a). The system informed failed to login and showed illegal user from source. Xinetd heard all of the service ports for the services listed in its configuration file and informed the attacker via 10.10.10.20, which repeatedly tried to penetrate Port 23, as shown in Fig. 4(c). Xinetd heard the incoming requests and launched the appropriate service from 10.10.10.20. Meanwhile, item (a) and (d) confirmed the unsuccessful penetration of password for user ‘admin’. In Fig. 4(d) a partial history log from brute-force via attempts of medusa and Hydra is shown. Penetration passwords that SSH and Telnet conducted during this experiment from beginning to end are compiled and visualized shown in Fig. 6(b) below.

  2. The penetration by attacker conducted is shown in Figure 3 (a) above. It triggered and produced a history log, as shown in Fig. 4(c). In Fig. 5(a) below, SSH brute force penetration from Attacker 10.10.10.20 is shown. They found failure to attempt user login as an “admin and “root”.

  3. On the other hand, Fig. 5(b) inform some traffic probe for reconnaissance the HTTP application, was correlated with the attacks launched by Nikto, as shown in Fig. 2(c) above. The attackers attempted for confirmed the default configuration HTTP services via 10.10.10.15, whether it was possible to launch slow HTTP attack, buffer overflow and SQL injection.

3. Result and Analysis

Real traffic was sniffed out by TCPdump to produce a pcap file. Therefore, Snort was used to identify malicious traffic and threats. It produced a lot of alerts in the log directory of the “/var/log/snort” directory. From the probe stages, Snort was able to produce 248,376 lines of information about threats and 722,845 lines in penetration stages. Tables 1–4 show the number of alerts from each attack scenario that was conducted, with the exception of false alarms.
The number of rows generated are due to repetition of the same information by Snort [16], which can be simplified by initializing the signature-id and priority. It was observed that each alert had taxonomy content (signature-id, priority, src_ip, src_port, dst_ip, dst_port, time stamp, TTL, ToS, IP_Len, and Dgm_Len). Furthermore, to sort and combine it automatically we used our approach to categorize the same information based on signature-id and the priority of each alert.
The outcome discussion of this process is that Red Hat can be exploited and is possible to penetrate, while Snort could not identify all of the attack we conducted. It was only able to recognize an attack based on signatures without being able to take active response. Therefore, Snort should be combined with other defense systems. This allows it to become a powerful detection engine. Snort can perform protocol analysis, content matching, can be configured as a sniffer, packet logger, and have a large community for sharing and update information.

4. Conclusion and Future Works

This work presents the comprehensive network auditing risk analysis for awareness about security violations. It resulted in several issues as some attack scenarios could not be properly recognized, raise awareness cyber security especially variety of Internet threats and penetration testing is necessary to confirm our system are hackable or not. Furthermore, it can be argued that there are significant gaps in the Redhat operating system, such as every daemon and application running on it effects the balance between its security level and management system, that the number of vulnerabilities can be exploited, and that Redhat has a default self-defense system against validation attacks. We recognize that there are some problems that need to be solved in future works, such as how to extract the features for classifying between an attack and normal traffic from offline or online, how to visualize an alert to show details of taxonomy information from Snort, and how to combine the features of Snort and a firewall for a unified threat prevention approach.

Biography

Hold Ph.D from Universiti Teknologi Malaysia in 2013. He is senior lecturer in Faculty of Computer Science University of Sriwijaya, Indonesia. He is a senior member of IAES, member of IEEE and his professional profile has derived to computer and network security fields, focused on network attack and intrusion prevention/detection system. In 2011, He holds Certified Ethical Hacker (C|EH) & Certified Hacker Forensic Investigator (C|HFI) licensed from EC-Council USA and Cisco Certified Networking Associate since 2005.
jips-11-1-104f7.tif

Biography

He is a senior lecturer at of Computing, Universiti Teknologi Malaysia. He obtained his M.Sc and Ph.D in the area of Software Engineering, and Information Technology (IT) Security in 1998 and 2008 respectively. In software engineering, he focuses on the research of designing and development of mobile and telecommunication software. His main research activity in IT security is in the area of Intrusion Prevention and Detection (ITD). He is currently active in various academic activities and involves in university-industry link initiative in both areas.
jips-11-1-104f8.tif

Biography

Abdul Hanan Abdullah
He receives the B.Sc. and M.Sc from San Francisco, California, and Ph.D degree from Aston University, Birmingham, UK, in 1995. He is a Senior Professor at Faculty of Computing, Universiti Teknologi Malaysia. His research interest is in Information Security, Cloud and Grid Computing. He has professional experience serving as Chief of Editor IJ-CLOSER and several international journals as an editor. He is also a head of Pervasive Computing Research Group (PCRG) UTM and senior member of IEEE and ACM.
jips-11-1-104f9.tif

References

1. EG. Amoroso, "Cyber attacks: awareness," Network Security, vol. 2011, pp. 10-16, 2011.
crossref
2. G. Kenneth, "The challenge of cyber attack deterrence," Computer Law & Security Review, vol. 26, pp. 298-303, 2010.
crossref
3. W. Kim, O-R. Jeong, C. Kim, and J. So, "The dark side of the Internet: Attacks, costs and responses," Information Systems, vol. 36, pp. 675-705, 2011.
crossref
4. G. Kenneth, "Cyber Weapons Convention," Computer Law & Security Review, vol. 26, pp. 547-551, 2010.
crossref
5. S. Zhang, J. Li, X. Chen, and L. Fan, "Building network attack graph for alert causal correlation," Computers & Security, vol. 27, pp. 188-196, 2008.
crossref
6. C. Wang, N. Du, and H. Yang, "Generation and Analysis of Attack Graphs," Procedia Engineering, vol. 29, pp. 4053-4057, 2012.
crossref
7. H. Gascon, A. Orfila, and J. Blasco, "Analysis of update delays in signature-based network intrusion detection systems," vol. 30, pp. 613-624, 2011.
crossref
8. H. Holm, "Performance of automated network vulnerability scanning at remediating security issues," Computers & Security, vol. 31, pp. 164-175, 2012.
crossref
9. K. Helkala, N. Svendsen, P. Thorsheim, and A. Wiehe, "Cracking Associative Passwords," in Secure IT Systems, vol. 7617, In A. Jøsang, B. Carlsson (eds.), Springer Berlin, Heidelberg: 2012, pp. 153-168.
crossref
10. R. Beghdad, "Efficient deterministic method for detecting new U2R attacks," Computer Communications, vol. 32, pp. 1104-1110, 2009.
crossref
11. SSC. Silva, RMP. Silva, RCG. Pinto, and RM. Salles, "Botnets: A survey," COMPUTER NETWORKS, vol. 57, pp. 378-403, 2013.
crossref
12. PC. Hershey, and CB. Silio, "Procedure for detection of and response to Distributed Denial of Service cyber attacks on complex enterprise systems," in Systems Conference (SysCon), 2012 IEEE International, 2012, pp. 1-6.
crossref
13. PCRG, 2012, Intrusion & Threat Detection Universiti Teknologi Malaysia Dataset (ITD UTM); Available: http://pcrg-utm.org/dataset/.

14. N. Hubballi, S. Biswas, S. Roopa, R. Ratti, and S. Nandi, "LAN attack detection using Discrete Event Systems," ISA Transactions, vol. 50, pp. 119-130, 2011.
crossref
15. C. P. software, 2012, Riverbed® Cascade® Pilot software; Available: http://www.riverbed.com/us/products/cascade/cascade_pilot.php.

16. L. Yang, and D. Weng, in Snort-based Campus Network Security Intrusion Detection System Information Engineering and Applications, vol. 154, In R. Zhu, Y. Ma (eds.), Springer, London: 2012, pp. 824-831.

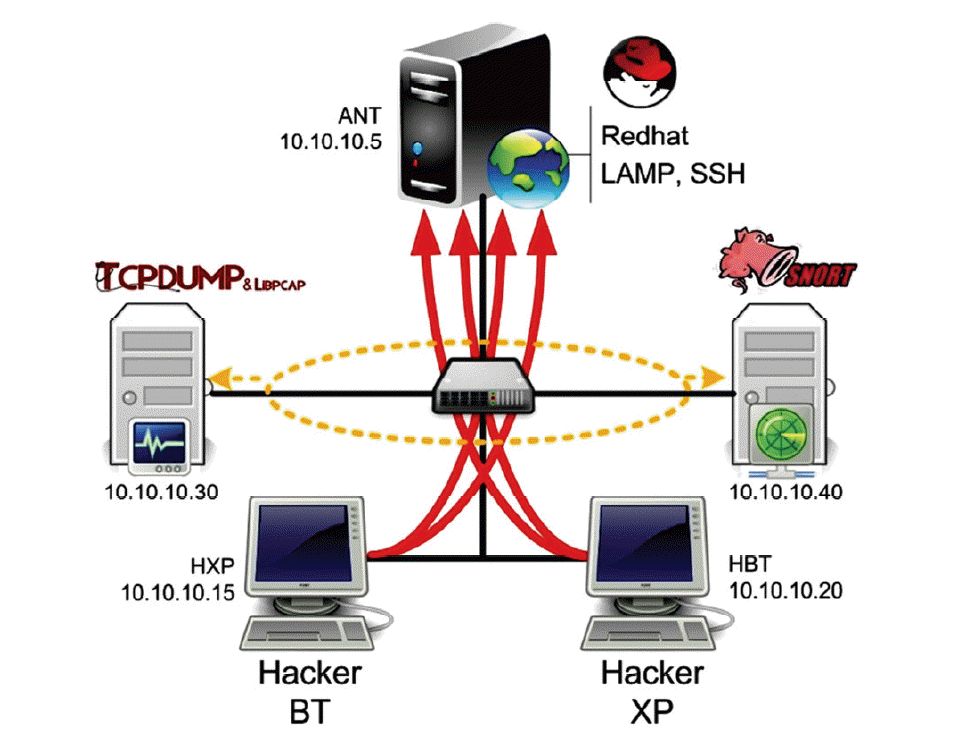

Fig. 1
Network test bed topology.
jips-11-1-104f1.tif

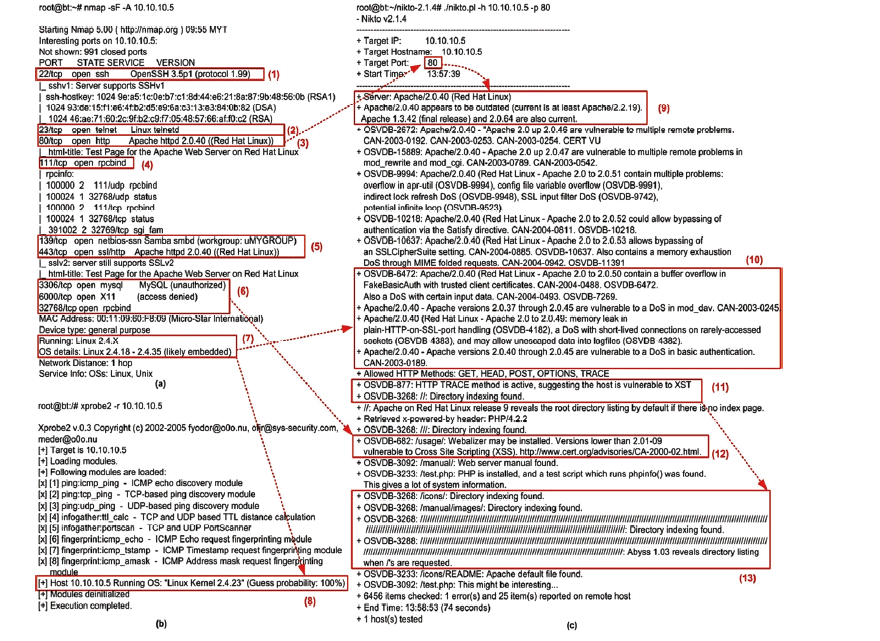

Fig. 2
Reconnaissance phase.
jips-11-1-104f2.tif
Fig. 3
Penetration phases.
jips-11-1-104f3.tif

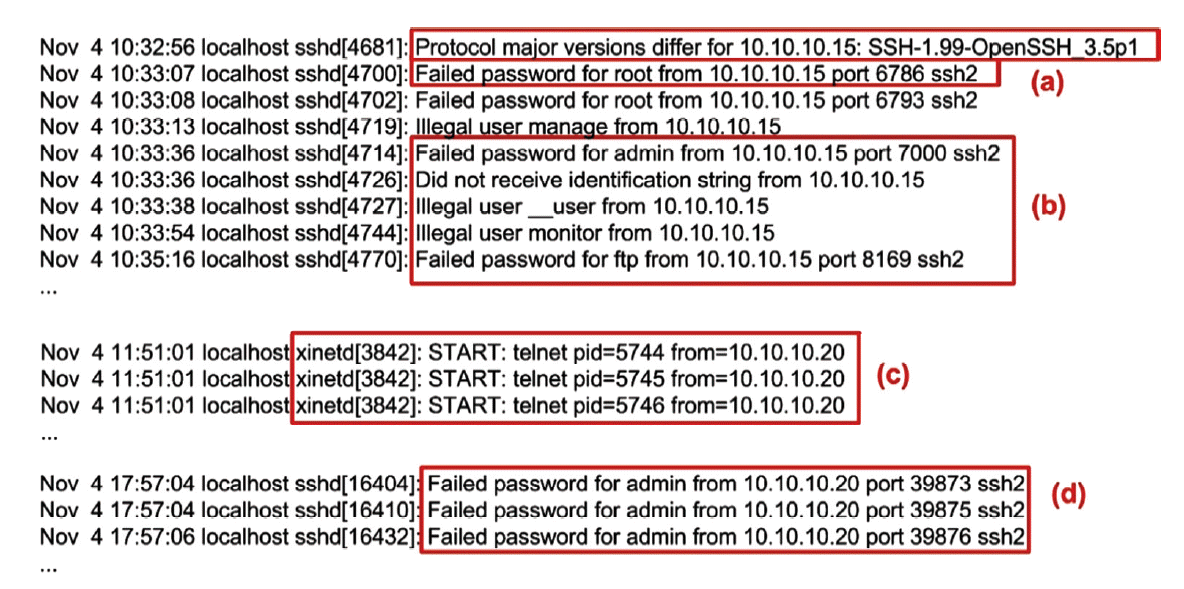

Fig. 4
History log.
jips-11-1-104f4.tif

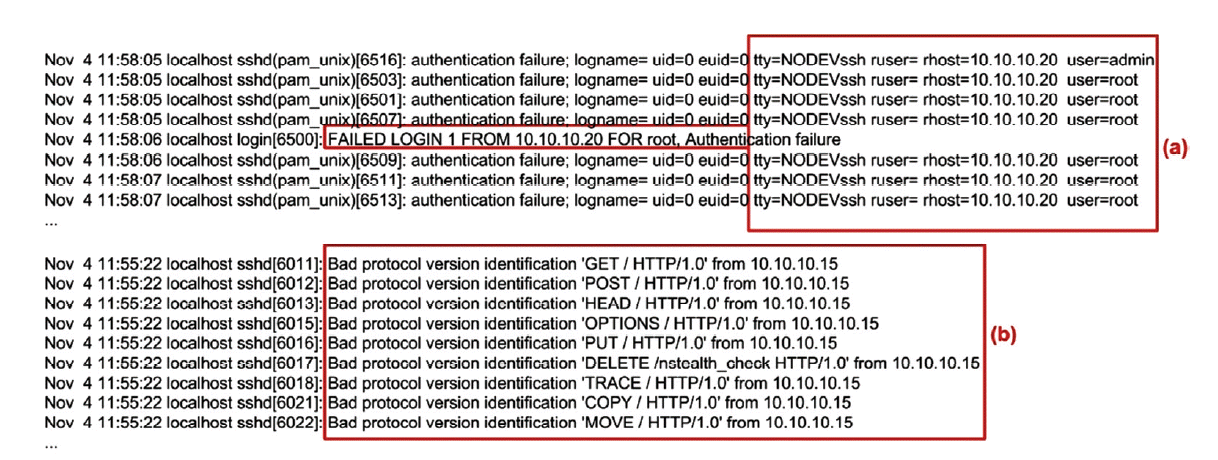

Fig. 5
History log.
jips-11-1-104f5.tif

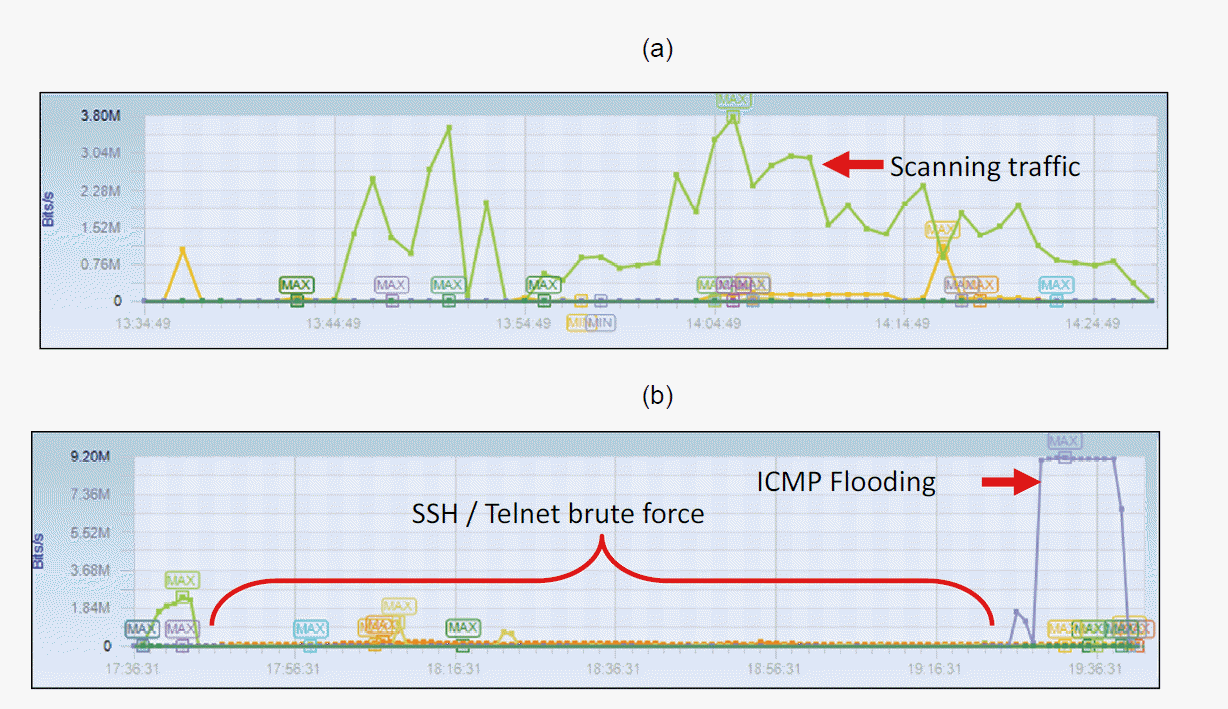

Fig. 6
Overall traffic and protocol used, (a) Reconnaissance phase and (b) Penetration phase.
jips-11-1-104f6.tif
Table 1
Number of alert from scanning stages
No Detected Alert Priority Total
1 ICMP PING NMAP 2 488
2 http_inspect) DOUBLE DECODING ATTACK 2 165
NETBIOS SMB-DS repeated logon failure 1 50
3 (http_inspect) BARE BYTE UNICODE ENCODING 3 13
4 (portscan) TCP Portscan 3 13
5 NETBIOS SMB ADMIN$ share access 3 11
6 X11 xopen 3 11
7 SCAN Amanda client-version request 2 8
8 ICMP webtrends scanner 2 7
9 NETBIOS SMB repeated logon failure 1 5
10 RPC portmap Solaris sadmin port query udp request 2 4
11 RPC portmap rstatd request TCP 2 4
12 (portscan) TCP Portsweep 3 3
13 (spp_rpc_decode) Incomplete RPC segment 3 2
14 NETBIOS SMB C$ share access 3 2
15 RPC portmap UNSET attempt UDP 111 2 2
Table 2
Number of alert of password guessing
No Detected Alert Priority Total
1 WEB-MISC/etc/passwd 2 3885
2 INFO TELNET login incorrect 2 600
3 WEB-IIS cmd.exe access 1 561
4 COMMUNITY WEB-PHP XSS attempt 1 450
5 WEB-MISC .htpasswd access 1 99
6 (spp_ssh) Protocol mismatch 3 20
7 WEB-MISC/~root access 2 17
8 (ftp_telnet) FTP command parameters malformed 1 6
9 (ftp_telnet) FTP bounce attempt 3 4
10 (ftp_telnet) FTP command parameters were too long 1 4
11 (ftp_telnet) Invalid FTP Command 3 3
Table 3
Number of alert of implant malware
No Detected Alert Priority Total
1 WEB-CGI perl.exe command attempt 2 26
2 WEB-CGI calendar_admin.pl arbitrary command execution 1 26
3 BACKDOOR sensepost.exe command shell attempt 2 18
4 WEB-IIS CodeRed v2 root.exe access 1 17
5 WEB-CGI imagemap.exe access 2 10
6 WEB-MISC Phorecast remote code execution attemp 1 5
7 BACKDOOR c99shell.php command request 1 3
8 WEB-MISC console.exe access 2 2
9 WEB-MISC cs.exe access 2 1
10 MISC source port 53 to <1024 2 1
Table 4
Number of alert of flooding attack
No Detected Alert Priority Total
1 ICMP PING 3 93308
2 ICMP Large ICMP Packet 2 92762
3 ICMP PING Windows 3 46629
4 ICMP Echo Reply 3 46164
5 ICMP Destination Unreachable Port Unreachable 3 3148
6 BAD-TRAFFIC tcp port 0 traffic 3 2435
7 ICMP Source Quench 2 826
8 ICMP Address Mask Request 3 16
9 ICMP Destination Unreachable Communication with Destination Host is Administratively Prohibited 3 10
